Feature Matrix

The following table tells you about the different ways to generate a class with the code generation plugin. For each possibility is given an example with screenshot and resulting class.

Ways to generate code

The following list shows the different ways to create a java class. For each method an example is given

1. Create with a Java Emitter template
2. Create with a Java Emitter template and enhance with AST (Abstract Syntax Tree) code generation
3. Generate a Java Emitter template and generate code with it
4. Generate the class from scratch with AST
5. Generate a Java Emitter template and generate code with it that is further enhanced with AST code generation
6. Above 2. - 5. can be combined with a reference implementation. A reference implementation is a class with designated methods that are copied into the generated class.
7. The java class can be asossiated with a database through an inputfile that specifies the structure
8. The java class can be asossiated with a database through a connection to a database table
9. The java class may not be related to a database.

Supported input files

The input files define a model that conform to a specified syntax/language. You can supply your own model by defining a domain specific language (DSL). The following input files are supported. Futher can be added through extensions.

• SQL create script for Oracle: the file must end on *.sql
• XML files: the generator for the model must be specified in the XML file. The generator parses the file and generates a model object that is used in the generation of the java class

Ways to extend the plugin

This sections lists all the extension points provided by the plug-in and states their use.

• ch.sahits.codegen.java.generator: This extension point let's you supply your own generator classes (1..n) that are needed when using the generation option. The classes must implement the interface IBaseGenerator
• ch.sahits.codegen.java.inputdbconnection: This extension point let's you supply your own model generator classes (1..n) for database tables through a db connection. The generator classes must implement the interface IDBConnectionModelGenerator. Besides the generator class you specify for which database product this class can generate a model. This information is used in the DB product drop-down list. The class supplies default values for the connection.
• ch.sahits.codegen.java.inputdbparser: This extension point let's you supply parsers (1..n) for an *.sql file for a specific DB product. If for one database product more than one implementation/extension exits only the first one found in the registry is evaluated. The parser class must implement the interface IDBInputParser. The class supplies default values for the connection.
• ch.sahits.codegen.java.inputparser: This extension point let's you define your own parser/model generator (1..n) for an input file type. The file type is differentiated by the file extension. If there are several extensions for one file extension the first found will be applied. The parser must implement the interface IInputParser
• ch.sahits.codegen.java.jettemplate: This extension point let you supply your own Java Emitter templates (1..n) as an extension
• ch.sahits.codegen.inputxmlparser: This extension point let's you define 1..n XML parser classes that can parse an XML input file. The classes must implement the interface IXMLInputFileParser
• ch.sahits.codegen.java.connectionpage: This extension point offers you the possibility to define your own ways to retrieve the database data. There must be specified a class name that implements the basic wizard page class BasicDBDefinitionPage.
• ch.sahits.codegen.sql.manipulation: This extension point provides you with the possibility to define a manipulation class that changes the data that are written into the insert script.

Implemented Extensions

This section shows where in the plugin the extension points are used to extend the functionality and thereby also funcion as a reference.

• ch.sahits.codegen.java.generator: The classes InitializableDbBeanGenerator, PureASTOracleDAOGenerator, ASTBeanWithDelete and JETASTGenerator are extensions. The sources can be viewed at Sourceforge.net. The definition of the extension is as follows:

     <extension point="ch.sahits.codegen.java.generator">
        <generator
  		class="ch.sahits.codegen.java.generator.jettemplate.InitializableDbBeanGenerator">
        </generator>
        <generator
  		class="ch.sahits.codegen.java.generator.ast.PureASTOracleDAOGenerator">
        </generator>
        <generator
  		class="ch.sahits.codegen.java.generator.ast.ASTBeanWithDelete">
        </generator>
        <generator
  		class="ch.sahits.codegen.java.generator.ast.JETASTGenerator">
        </generator>
     </extension>


• ch.sahits.codegen.java.inputdbconnection: The class MySQLConnectionModelGenerator implements this extension point. The source code can be viewed at Sourceforge.net. The definition of the extension is as follows:

     <extension point="ch.sahits.codegen.java.inputdbconnection">
        <dbconnection
  		class="ch.sahits.codegen.java.input.db.MySQLConnectionModelGenerator"
  		dbproduct="MySQL">
        </dbconnection>
     </extension>


• ch.sahits.codegen.java.inputdbparser: The class OracleSQLCreateScriptInputParser is the extension. The source code can be reviewed at Sourceforge.net. The definition of the extension is as follows:

     <extension point="ch.sahits.codegen.java.inputdbparser">
        <dbproduct name="oracle"
  		parserClass="ch.sahits.codegen.java.input.OracleSQLCreateScriptInputParser">
        </dbproduct>
     </extension>


• ch.sahits.codegen.java.inputparser: Currently this extension is not used by the plugin itself
• ch.sahits.codegen.java.jettemplate: The dbbean.javajet Java Emitter template is realised through this extension point. The definition of the extension is as follows:

     <extension point="ch.sahits.codegen.java.jettemplate">
        <template location="jet_templates" name="dbbean.javajet">
        </template>
     </extension>



• ch.sahits.codegen.inputxmlparser:
• ch.sahits.codegen.java.connectionpage: Define the way how the database connection data are retrieved.

  	     <extension
           point="ch.sahits.codegen.java.connectionpage">
         <dbDefinition
              btnText="DB with connection"
              btnTooltip="Create the class DB relations gathered from the connection"
              className="ch.sahits.codegen.java.internal.wizards.DBDefinitionPage"
              pageTitle="Java Code Generator">
         </dbDefinition>
      </extension>


• ch.sahits.codegen.sql.manipulation: You can define a manipulation class for your data that is read from database A. The manipulation takes place before the insert script is generated.

    <extension
           point="ch.sahits.codegen.sql.manipulation">
        <manipulationClass
              class="ch.sahits.codegen.example.CountryChanger">
        </manipulationClass>
     </extension>


Checks

This section tells you about the checks that are implemented in the wizard.

Class definition

The checks on this page are the same as the one in the ordinary class wizard.

Java Code Generation

Since different values are needed for the different ways of code generation let us splitt the checks up:

Generating code with Java Emitter templates

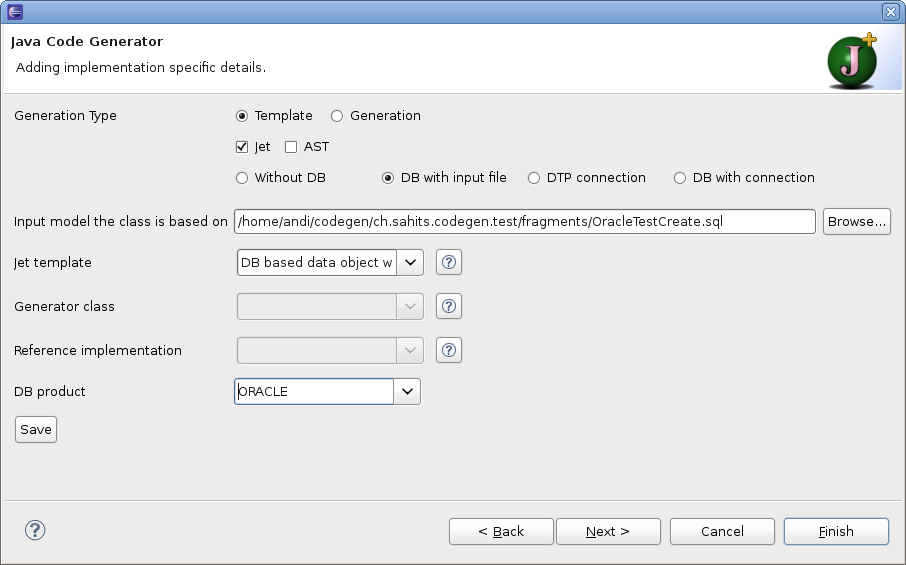

Screenshot: As seen in the walkthrough There are to ways for generating code for a database table:
Through an input file. Here the following fields are needed:

• Data Input must be a valid file.
• Jet template may be provided as a valid file or a selection from the drop down
• DB product must be specified (NONE is not valid)

Through a database connection:

• Jet template may be provided as a valid file or a selection from the drop down
• DB product must be specified (NONE is not valid)
• Information from page 3 are needed

If you choose to go with the option "Without DB" the following fields are needed:

• Data Input must be a valid file.
• Jet template may be provided as a valid file or a selection from the drop down

JETemplate with AST improvement

Screenshot: As seen in the walkthrough There are to ways for generating code for a database table:
Through an input file. Here the following fields are needed:

• Data Input must be a valid file.
• Jet template may be provided as a valid file or a selection from the drop down
• Supply a generator class that implements the interface IJETASTGenerator
• If the generator class implements the interface IReferenceImpleCaller a reference implementation must be supplied.
• If a reference implementation is needed the class must implement the interface IReferenceImplementation
• DB product must be specified (NONE is not valid)

Through a database connection:

• Jet template may be provided as a valid file or a selection from the drop down
• Supply a generator class that implements the interface IJETASTGenerator
• If the generator class implements the interface IReferenceImpleCaller a reference implementation must be supplied.
• If a reference implementation is needed the class must implement the interface IReferenceImplementation
• DB product must be specified (NONE is not valid)
• Information from page 3 are needed

If you choose to go with the option "Without DB" the following fields are needed:

• Data Input must be a valid file.
• Jet template may be provided as a valid file or a selection from the drop down
• Supply a generator class that implements the interface IJETASTGenerator
• If the generator class implements the interface IReferenceImpleCaller a reference implementation must be supplied.
• If a reference implementation is needed the class must implement the interface IReferenceImplementation

Generate JETemplate

Screenshot: As seen in the walkthrough There are to ways for generating code for a database table:
Through an input file. Here the following fields are needed:

• Data Input must be a valid file.
• Jet template may be provided as a valid file or a selection from the drop down
• Supply a generator class that implements the interface IJetCodeGenerator
• DB product must be specified (NONE is not valid)

Through a database connection:

• Jet template may be provided as a valid file or a selection from the drop down
• Supply a generator class that implements the interface IJetCodeGenerator
• DB product must be specified (NONE is not valid)
• Information from page 3 are needed

If you choose to go with the option "Without DB" the following fields are needed:

• Data Input must be a valid file.
• Jet template may be provided as a valid file or a selection from the drop down
• Supply a generator class that implements the interface IJetCodeGenerator

AST generation

Screenshot: As seen in the walkthrough There are to ways for generating code for a database table:
Through an input file. Here the following fields are needed:

• Data Input must be a valid file.
• Jet template may be provided as a valid file or a selection from the drop down
• Supply a generator class that implements the interface IASTGenerator
• Supply a generator class that implements the interface IPureASTGenerator
• If the generator class implements the interface IReferenceImpleCaller a reference implementation must be supplied.
• If a reference implementation is needed the class must implement the interface IReferenceImplementation
• DB product must be specified (NONE is not valid)

Through a database connection:

• Jet template may be provided as a valid file or a selection from the drop down
• Supply a generator class that implements the interface IASTGenerator
• Supply a generator class that implements the interface IPureASTGenerator
• If the generator class implements the interface IReferenceImpleCaller a reference implementation must be supplied.
• If a reference implementation is needed the class must implement the interface IReferenceImplementation
• DB product must be specified (NONE is not valid)
• Information from page 3 are needed

If you choose to go with the option "Without DB" the following fields are needed:

• Data Input must be a valid file.
• Jet template may be provided as a valid file or a selection from the drop down
• Supply a generator class that implements the interface IASTGenerator
• Supply a generator class that implements the interface IPureASTGenerator
• If the generator class implements the interface IReferenceImpleCaller a reference implementation must be supplied.
• If a reference implementation is needed the class must implement the interface IReferenceImplementation

JETemplate generation with AST improvement

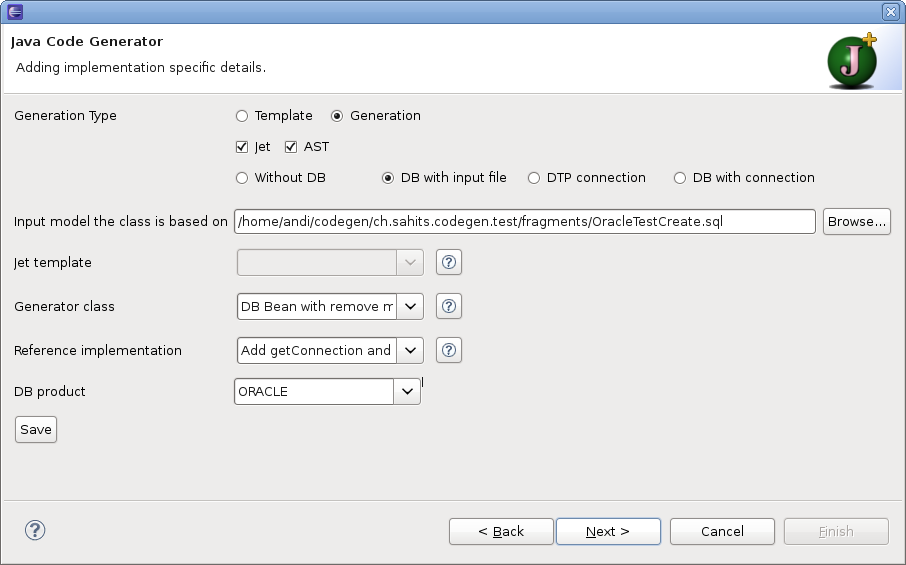

Screenshot: As seen in the walkthrough There are to ways for generating code for a database table:
Through an input file. Here the following fields are needed:

• Data Input must be a valid file.
• Jet template may be provided as a valid file or a selection from the drop down
• Supply a generator class that implements the interface IASTGenerator
• Supply a generator class that implements the interface IASTGeneratorInizializer
• If the generator class implements the interface IReferenceImpleCaller a reference implementation must be supplied.
• If a reference implementation is needed the class must implement the interface IReferenceImplementation
• DB product must be specified (NONE is not valid)

Through a database connection:

• Jet template may be provided as a valid file or a selection from the drop down
• Supply a generator class that implements the interface IASTGenerator
• Supply a generator class that implements the interface IASTGeneratorInizializer
• If the generator class implements the interface IReferenceImpleCaller a reference implementation must be supplied.
• If a reference implementation is needed the class must implement the interface IReferenceImplementation
• DB product must be specified (NONE is not valid)
• Information from page 3 are needed

If you choose to go with the option "Without DB" the following fields are needed:

• Data Input must be a valid file.
• Jet template may be provided as a valid file or a selection from the drop down
• Supply a generator class that implements the interface IASTGenerator
• Supply a generator class that implements the interface IASTGeneratorInizializer
• If the generator class implements the interface IReferenceImpleCaller a reference implementation must be supplied.
• If a reference implementation is needed the class must implement the interface IReferenceImplementation

Database access

• This wizard page is optional unless the database model is generated through a database connection or the generator class is needed and it implements the interface IDBAccess
• DB name may not be null or empty
• DB host may not be null or empty
• DB port may not be null or empty
• DB user may not be null or empty
• DB password may not be null or empty
• DB table may not be null or empty if the database model is generated through a database connection
• DB schema may be null if and only if the database product does not support the schema concept (e.g. MySQL)
